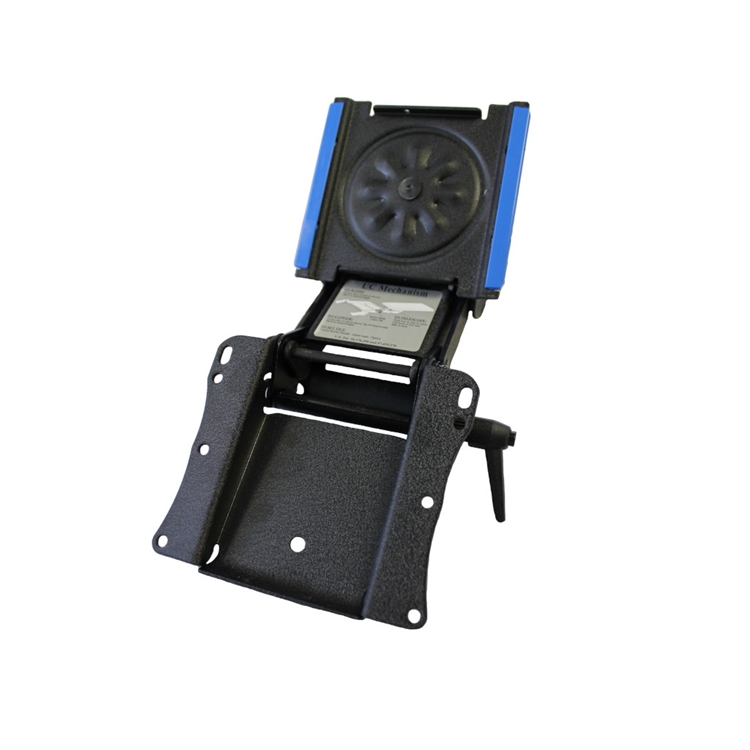

Ultra Compact
The Ultra Compact keyboard mechanism is designed for applications that require minimal track length and maximum retraction. Ideal for height adjustable tables with a cross member as little as 12" from the front edge of your work surface.
Model
#
KUC11
constructed 96% of steel and is recyclable
Our Price:
$
420.00
Availability:
Usually Ships in 1 to 2 Business Days
.
Description
Technical Specs
Designed for applications that require minimal track length and maximum retraction.
Sturdy box frame construction for a superior stable keyboard foundation.
Height Adjustment
above:
1.75"
below:
4"
total:
5.75"
Height Set:
lift & release
Tilt:
+10° / -20°
360
° Swivel:
yes
Fully Retractable:
yes, 11" track
Material:
Steel
Description

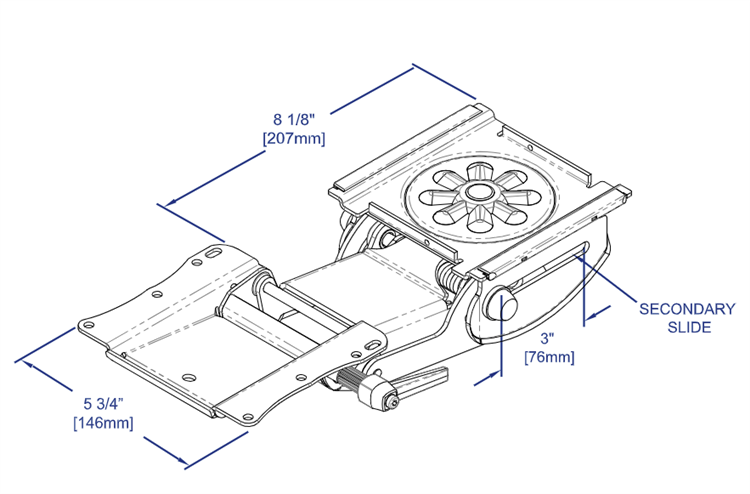

Patented secondary slide & unique arm design provide the "Ultra Compact" foot-print
Full retraction with 11" Track
"No Knob/Gravity Lock" spring assisted height adjustment
5-3/4" total height adjustment range (1-3/4" above; 4" below the worksurface)
Rugged steel construction finished in a durable black powder coat
Meets or Exceeds ANSI / BIFMA X5.5 2008 Industry Standard
All mounting hardware and instructions included
